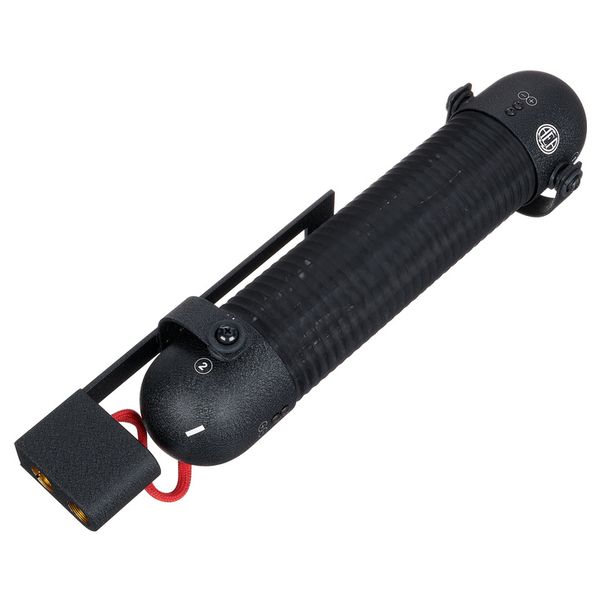

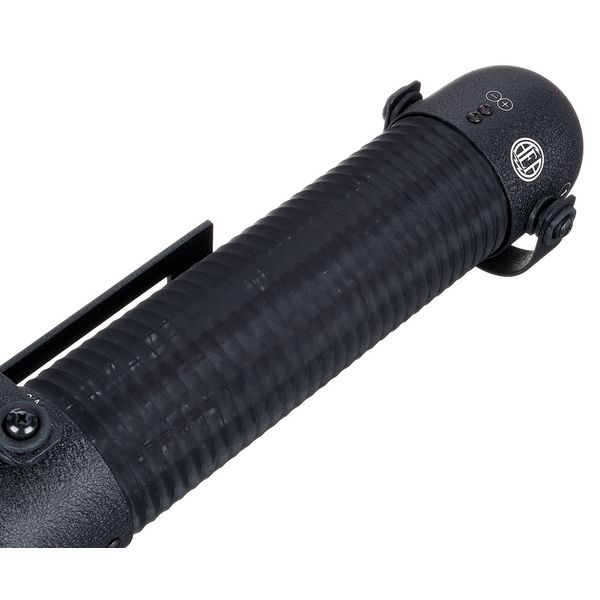

AEA R88A Stereo Ribbon Microphone
- Award-winning stereo perspective – same renowned imaging as the passive R88mk2
- Active phantom-powered design – 48 V operation with 12 dB additional transformer gain
- Universal preamp compatibility – works with any preamp and input impedance
- Fast transient response – accurate and detailed reproduction of dynamic sources
- Natural stereo ribbon sound – realistic and spacious audio capture
- Single-microphone stereo imaging – delivers highly precise stereo recordings with one mic
- High SPL handling – oversized ribbon elements easily manage loud sound sources
- Blumlein figure-8 configuration – 90° stereo pickup pattern for immersive recordings
- Maximum SPL – handles up to 141 dB
Product information "AEA R88A Stereo Ribbon Microphone"
The AEA R88A is an active stereo ribbon microphone engineered to capture sound with exceptional realism and natural tonal balance. Equipped with custom toroid transformers, it reproduces audio with an open, honest character that closely reflects the way instruments and spaces are heard in real life.
Designed for demanding professional recording applications, the R88A excels at capturing the intricate details of complex sound sources such as drums, strings, piano, and acoustic ensembles. Its smooth transient response and natural frequency balance allow it to reproduce depth, texture, and spatial detail with remarkable accuracy.
The microphone features active electronics with an additional 12 dB of transformer gain, providing stronger output levels than traditional passive ribbon microphones. This added gain is particularly beneficial when recording quieter sources such as vocals, acoustic guitars, and delicate instrumental performances.
Its integrated active impedance buffers help maintain signal integrity across long cable runs and minimize susceptibility to electromagnetic interference, especially in environments with large lighting systems or complex stage setups. This ensures consistent performance in both studio and live recording situations.
The R88A operates using standard 48V phantom power and combines the classic warmth and dimensionality of ribbon microphone technology with the convenience, output level, and reliability expected in modern professional audio environments.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
AEA
Audio Engineering Associates
1029 N. Allen Ave. Pasadena, CA 91104
info@ribbonmics.com
https://aearibbonmics.com/
- Technical Data:
- Active version of the R88 mkII with 12 dB output gain increase
- Suitable for mid-side (M/S) stereo configuration
- Design: two ribbons mounted at 90° with figure-8 polar pattern
- Ribbon: 2 × 1.8 µm thin aluminum (4.7 × 59.7 mm each)
- Frequency range: 20 Hz – 20 kHz
- Maximum SPL: 141 dB SPL
- Sensitivity: 7.4 mV/Pa (-42.6 dBV)
- Output impedance: 92 Ohm
- Power supply: requires 48 V phantom power
- Connection: XLR-5M connector
- Dimensions (H × D): 381 × 99 mm
- Weight: 2.8 kg

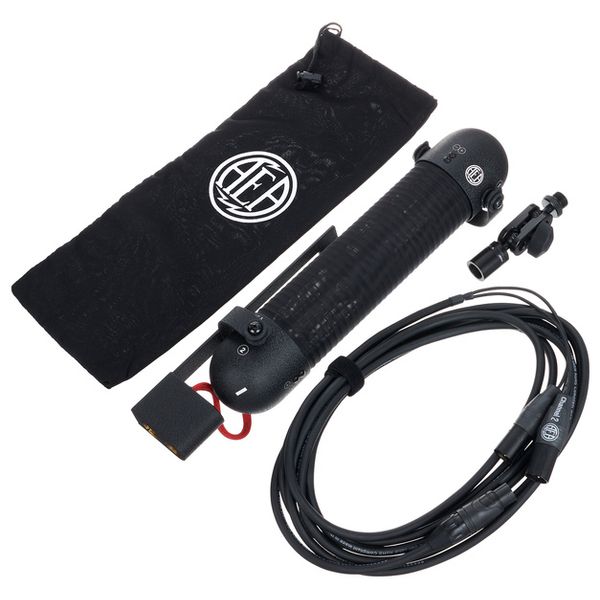

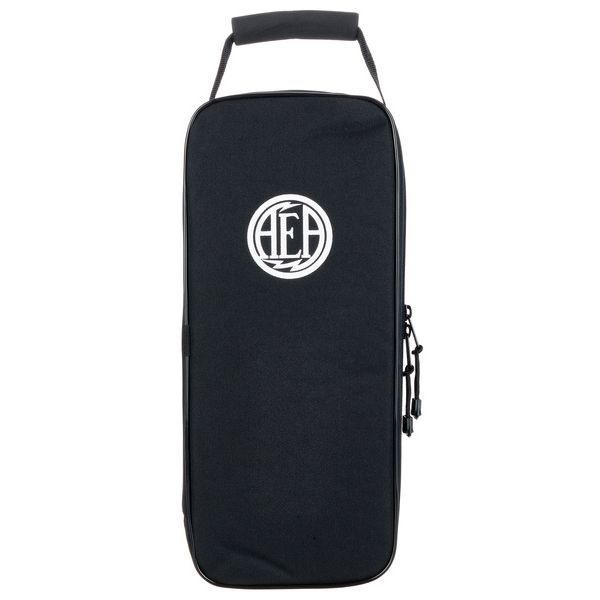

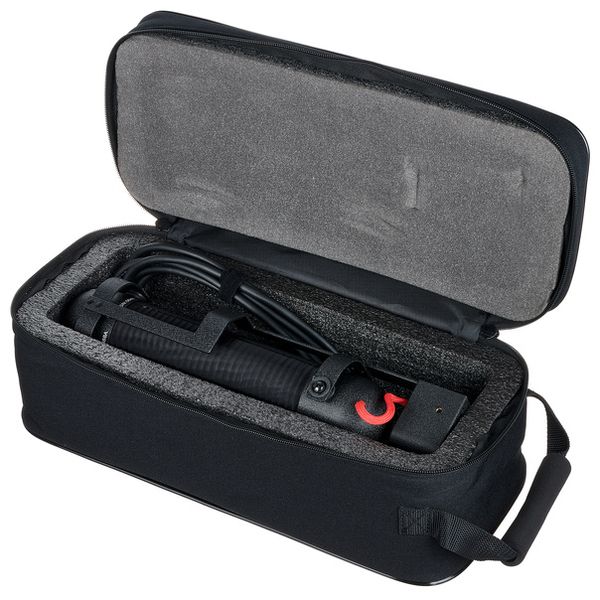

- Included: 4.5 m XLR cable (5F to 2 × XLR3-M), swivel adapter, protective cover, premium transport case
- Handmade in the USA
