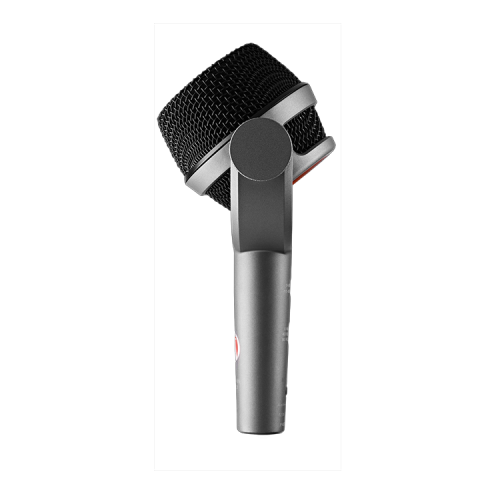

Austrian Audio OC7
Product information "Austrian Audio OC7"
The OC7 translates Austrian Audio’s superior true condenser technology and sonic signature into a specialized design for close-miking instruments, drums and amplifiers. Our proprietary OCC7 capsule gives the OC7 a wide frequency response and high SPL resistance, so you can record everything from acoustic guitar to snare drums with clarity and nuance.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Austrian Audio
Austrian Audio GmbH
Eitnergasse 15 1230 Wien AUSTRIA
office@austrianaudio.com
https://austrian.audio/
- Directional characteristicCardioid
- Frequency range20 Hz - 20 kHz
- Sensitivity10 mV/Pa
- Equivalent noise level19 dB SPL(A)
- Max. SPL154 db SPL (> 160 dB SPL with pad)
- Low cut filter40 Hz (2nd order), 80 Hz (2nd order)
- Switchable pad-10 dB
- Impedance275 Ω (symmetrical)
- Load impedance> 1 kΩ
- Supply voltage48 V (< 2 mA)
- Main connectorXLR 3 pin
- Dimensions147 x 82 x 54 mm
- Weight275 g
