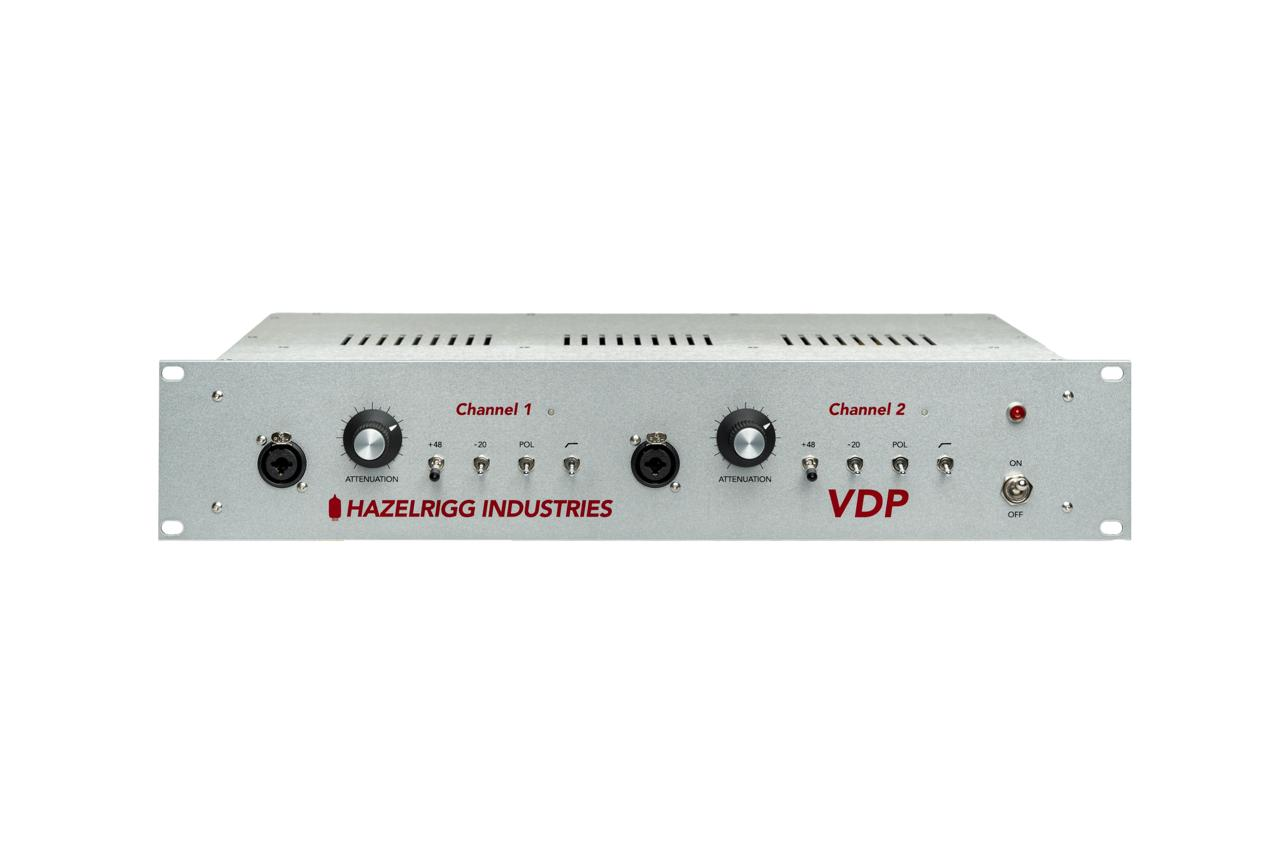

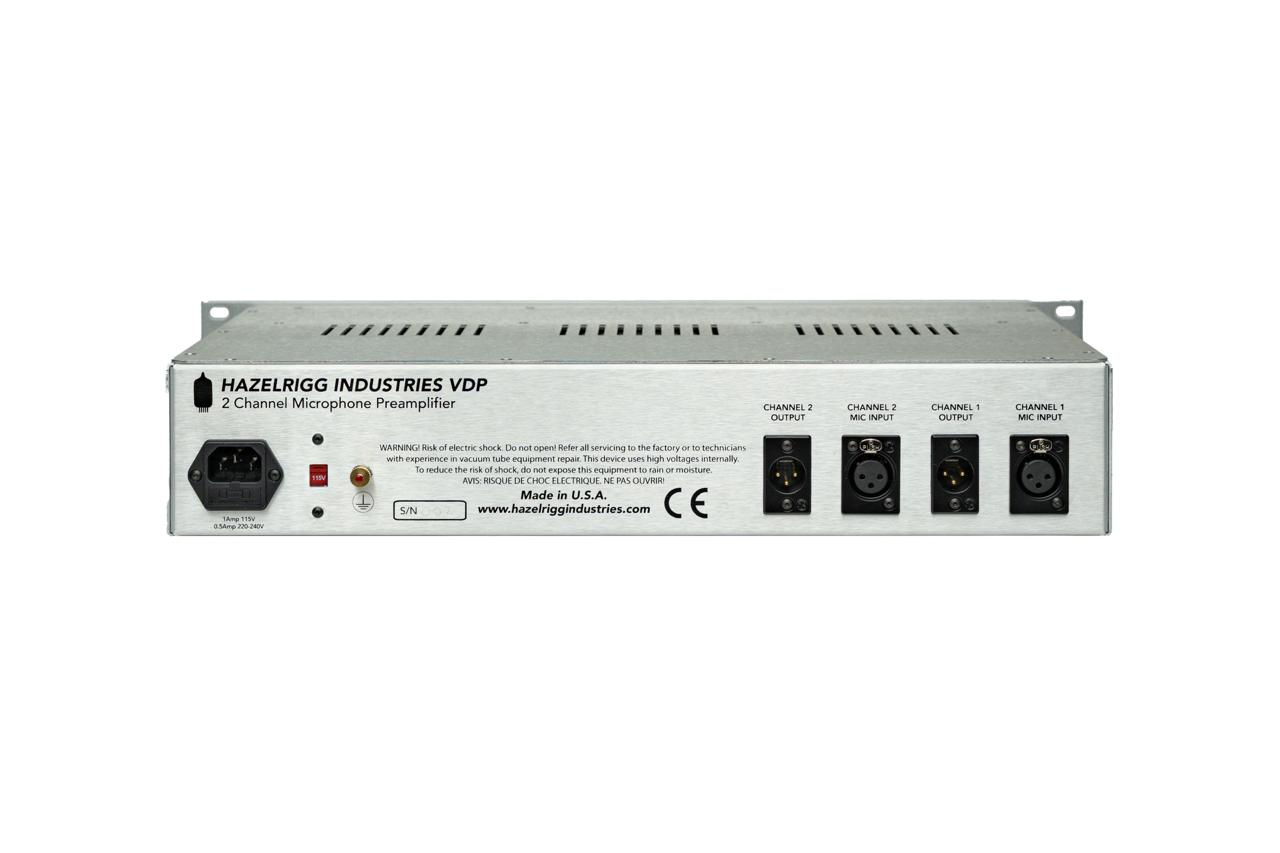

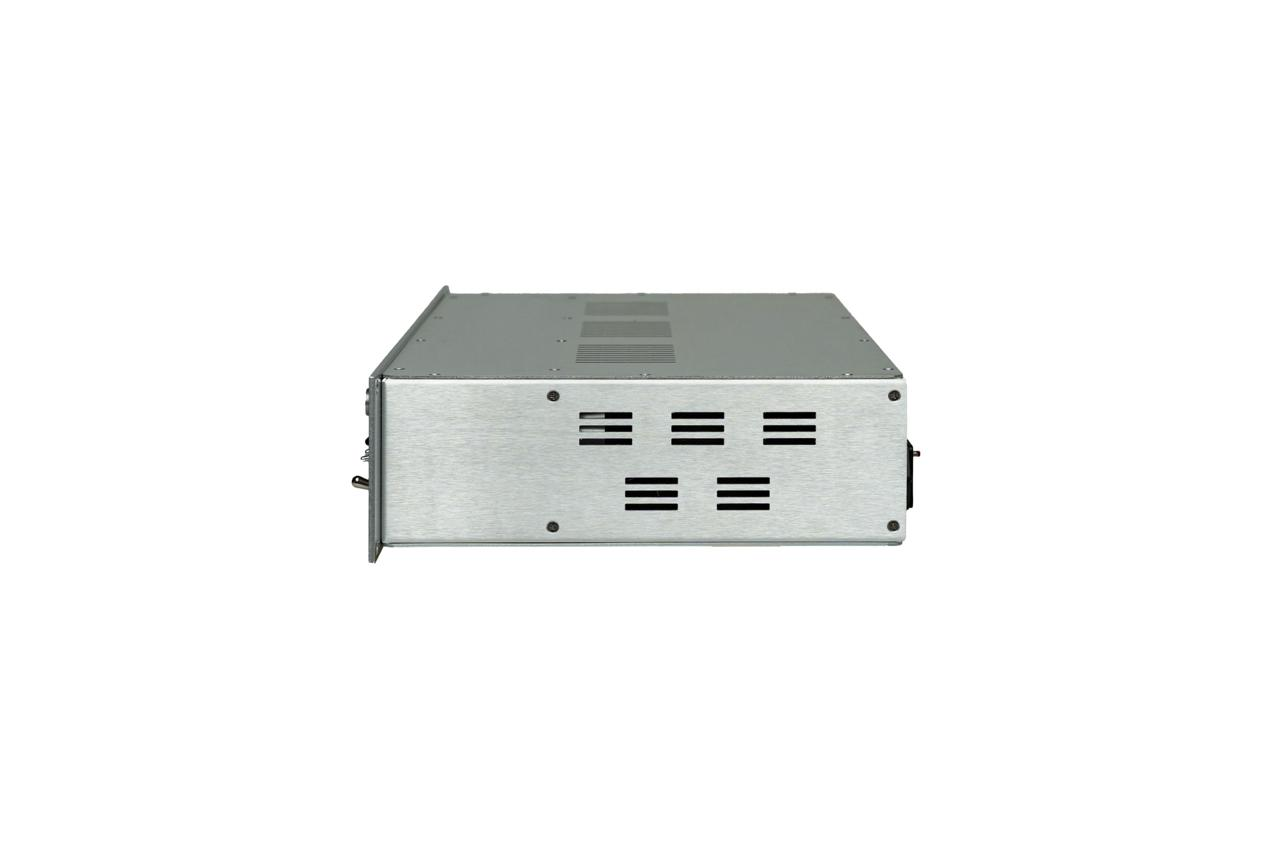

Hazelrigg Industries VDP
- Transformer-coupled I/O – rich musical saturation with isolated signal integrity from input to output
- High headroom and gain – up to +63 dB gain for ribbon microphones, condensers and high-SPL sources
- Front-access connectivity – quick-access Mic and DI inputs on the front panel for fast instrument tracking
- Precision gain management – integrated high-pass filter and -20 dB pad for controlled signal staging
- Aircraft-inspired phantom power switch – secure locking +48 V switch prevents accidental activation
- Polarity reversal control – dedicated phase inversion switch for multi-microphone alignment
Product information "Hazelrigg Industries VDP"
The DWF Hazelrigg VDP is a handcrafted premium two-channel tube preamp and DI designed to deliver the unmistakable warmth, depth, and musicality of a fully tube-driven signal path. Built in the USA with meticulous attention to detail, the VDP combines vintage-inspired tonal character with the reliability, headroom, and low-noise performance expected in modern professional studios.
Featuring transformer-coupled input and output stages together with a pure all-tube signal path, the VDP produces rich harmonic complexity, smooth saturation, and a refined analog sheen. Its design preserves the dimensional depth and musical response associated with classic tube equipment while maintaining exceptional clarity and articulation.
The VDP draws heavily from the acclaimed circuitry and power architecture of the legendary D.W. Fearn VT series, carrying forward the sonic heritage that shaped countless iconic recordings. At the same time, it introduces its own distinct tonal identity with increased gain, enhanced saturation capabilities, and a polished high-end character unique to the Hazelrigg lineup.
Designed as a highly versatile front-end solution, the VDP complements a wide range of microphones and recording sources. It provides clean, detailed gain for ribbon microphones, articulate presence for condenser microphones, and substantial headroom for dynamic microphones and high-output instruments.
Offering approximately 6 dB more gain than the VLC and the classic VT-2, the VDP delivers greater flexibility for both transparent recording and harmonically rich tube coloration. Its intuitive control layout and premium build quality make it an ideal choice for vocals, instruments, DI recording, and high-end studio production workflows.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Hazelrigg Industries
Hazelrigg Industries
124 Tartan Terrace, Chalfont, PA 18914, United States
support@hazelriggindustries.com
https://www.hazelriggindustries.com/
- Technical Data:
- Gain: +63 dB (minimum)
- Frequency response: ±0.6 dB (20 Hz – 20 kHz)
- THD: <0.5% (15 Hz – 15 kHz)
- Signal-to-noise ratio: 74 dB (minimum)
- Input impedance: 150 Ohm (optimized for 1.5 kΩ load)
- Tube complement: 2 × 6072A and 2 × 12AT7 (low-noise selected)
- Output type: low-Z, transformer-balanced
- Power supply: fully regulated solid-state B+, filament and +48 V
