Heritage Audio OST-6 V2

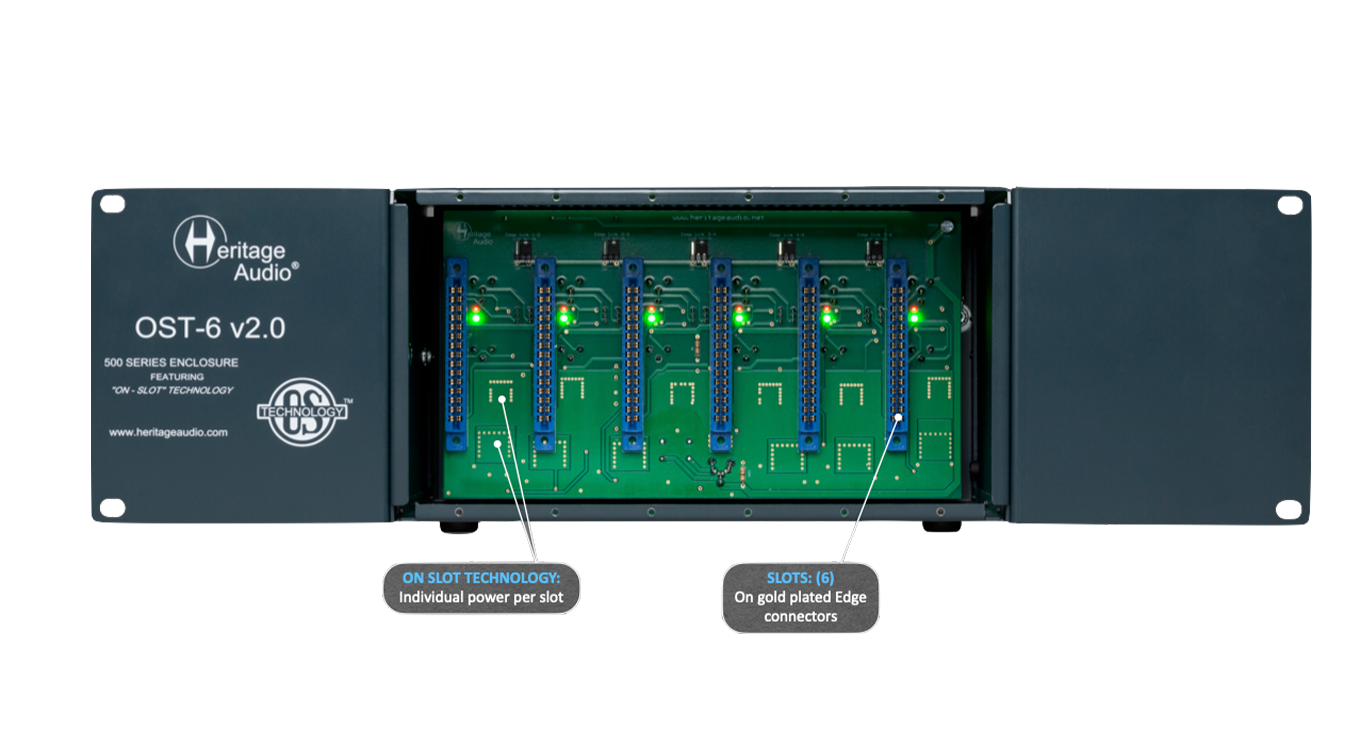

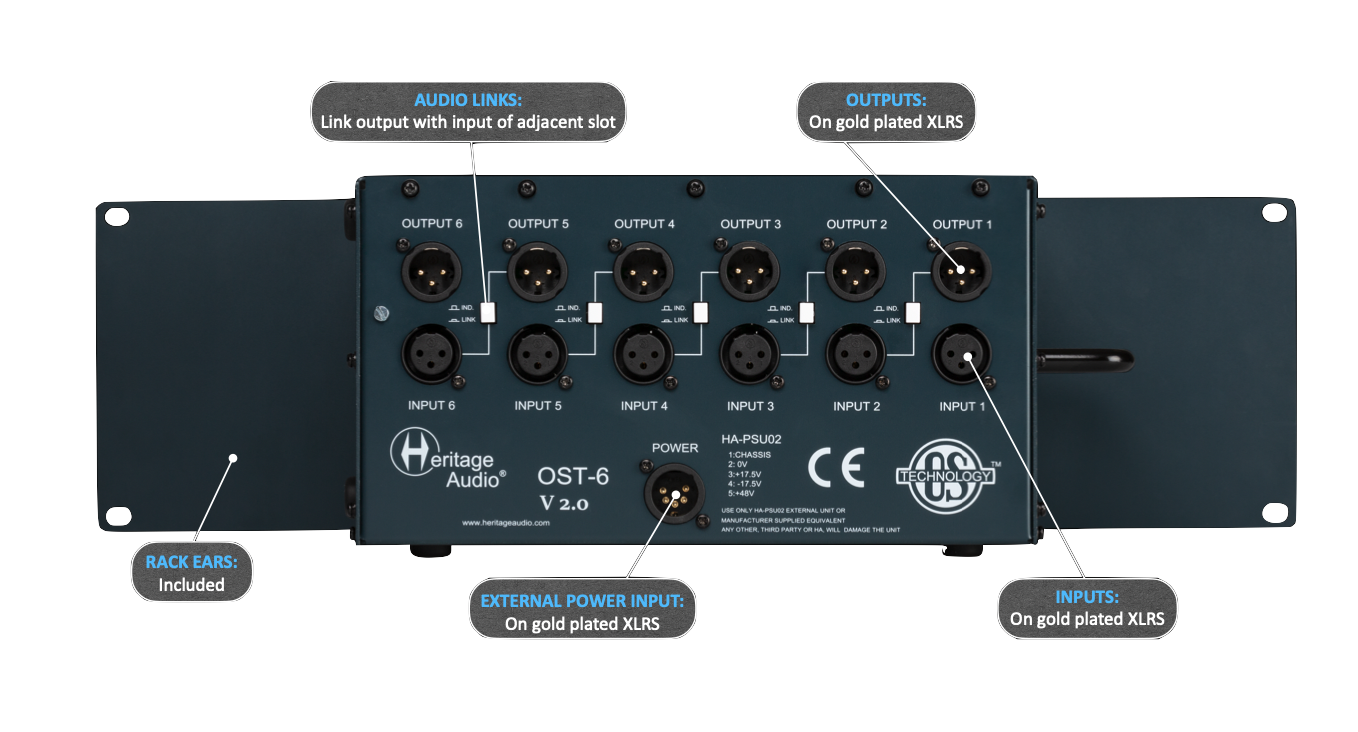

Features
- Individual power per slot
- gold plated Edge connectors
- Link output with input of adjacent slot
- gold plated XLRS outputs
- Rack ears included
- gold plated XLR inputs
Description
Product information "Heritage Audio OST-6 V2"
The OST-6 V2.0 500 series enclosure is designed for racking any and all 500-series modules and devices, including ‘double wide’ modules and even the most demanding Class A and vacuum tube designs.
The OST-6 V2.0 enclosure features Heritage Audio’s On Slot Technology, providing maximum protection, filtering, and isolation to each channel. While most 500-series enclosures on the market have a relatively simple power supply design essentially feeding every channel in parallel, each channel of the OST-6 V2.0 enclosure has its own power supply, individually regulated and isolated from the rest. This ensures that every 500-series module installed will perform at its peak potential, and that no ‘power hungry’ or even a faulty module will compromise the performance of another. In addition to reducing interference, many 500-series devices actually exhibit lower self-noise and better performance when racked in the OST-6 V2.0 enclosure, especially mic preamps.
A new and exciting feature in the V2.0 model is the Link feature, allowing each channel to be linked over to the next at the push of a button (on back panel), no patch cables required!
As with all Heritage Audio products; the 500 Series OST-6 V2.0 enclosures are built utilizing the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage Audio headquarters in Spain.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Heritage Audio
Den für das Produkt verantwortlichen Wirtschaftsakteur finden Sie
auf dem Produkt, der Verpackung oder in einer dem Produkt beiliegenden
Unterlage.
All products
Tech-Info
- On Slot Technology version v2.0.
- Maximum audio rails current: 1.8 A per rail (2,0 amps non-continuos), or 400 mA per slot, whatever is reached first.
- Maximum phantom power current: 140 mA.
- Operating voltage: Universal 100-240 V AC.
- Dimensions (W x H x L): 245 mm (284 mm with handle) x 134 mm x 185 mm.
- Weight: 2.368 Kg.
