SSL XL-Desk
- Legendary SSL Stereo Bus Compressor with high-pass filter sidechain
- Each mono channel includes a standard insert point in addition to rack insert
- One stereo and two mono aux sends
- two dedicated stereo return inputs
- Direct outputs on every channel, stereo return, and mix bus for stem printing
- Fully featured monitoring section with bass management
- Foldback A & B with individual talkbacks for headphone mixes
- Built-in Listen Mic input + classic compressor circuit with dedicated output
- AFL and Solo-In-Place modes with Solo Clear and Solo Safe protection
- Balanced D-Sub I/O plus front panel headphone and iJack connections
- High-quality internal power supply
Product information "SSL XL-Desk"

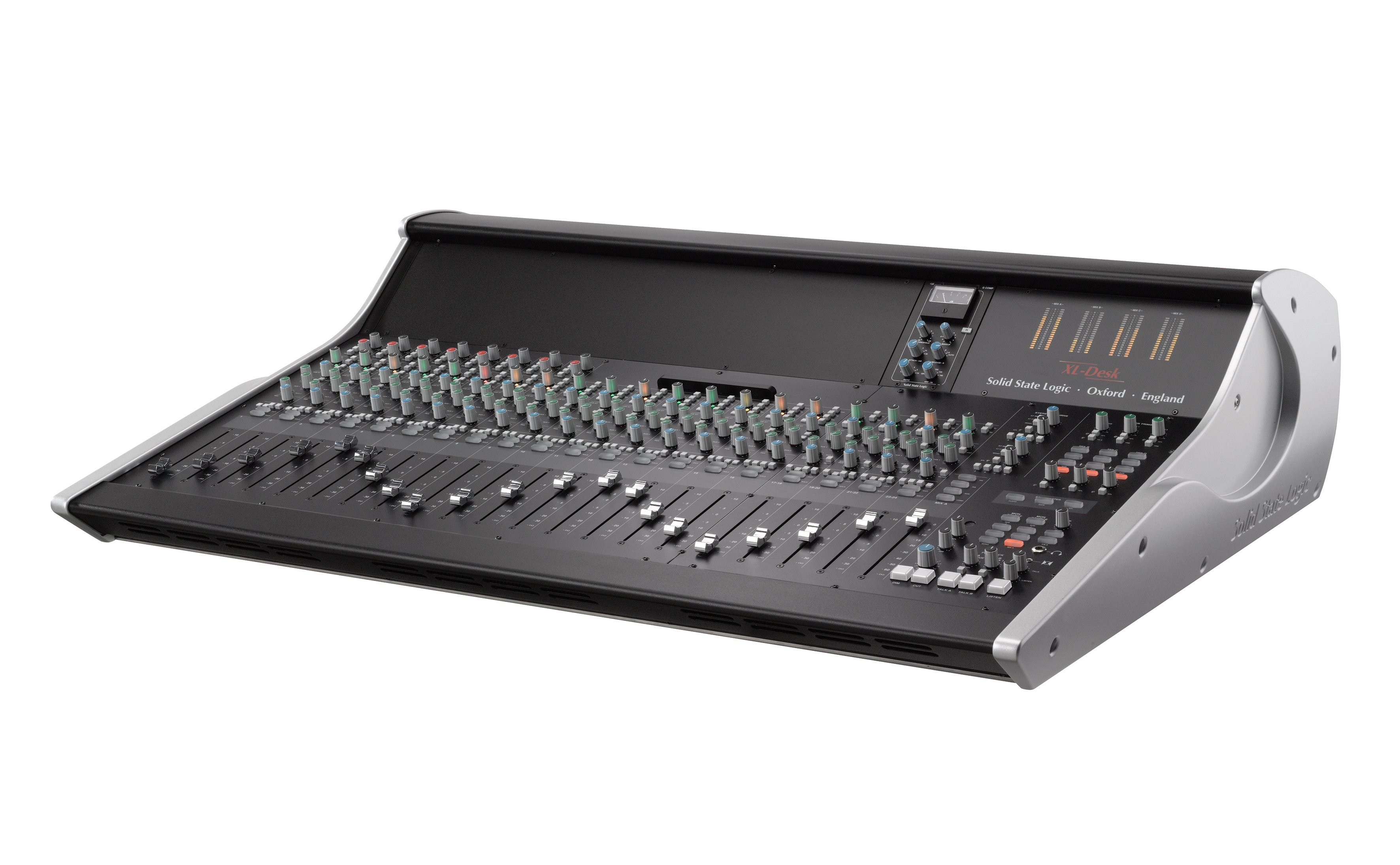

The Solid State Logic XL-Desk with empty 500 Series slots is a modern take on the classic analog studio console. Designed for tracking and mixing engineers who want an authentic analog workflow within a DAW-centered studio, XL-Desk delivers SSL’s renowned sound without the need for integrated DAW control or automation.
In many ways, it’s a traditional 24 into 8 analog console, but equipped with a host of advanced features. It offers 20 channel strips—16 dual-input mono (switchable between main input and DAW return) and 4 stereo channels. The first eight channels feature SSL’s Variable Harmonic Drive (VHD) mic preamps.
A built-in 18-slot 500-series rack offers flexible analog processing options—16 slots are empty in this version, while slots 17 & 18 include the legendary SSL Stereo Bus Compressor (hard-wired to Mix A). Four Mix Busses (A, B, C, D) provide versatile routing and summing flexibility, while direct outputs on every channel enable convenient stem printing.
With a comprehensive monitoring section, bass management, and dual foldback systems with talkback, the XL-Desk provides everything needed for professional tracking, mixing, and summing — all with SSL’s signature SuperAnalogue™ sound quality.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Solid State Logic
Solid State Logic UK Limited
Spring Hill Road Begbroke Oxford OX15 6DS
marketing@solidstatelogic.com
KLANG:TECHNOLOGIES GMBH
Wespienstraße 8-10 52062 Aachen Germany
contact@KLANG.com

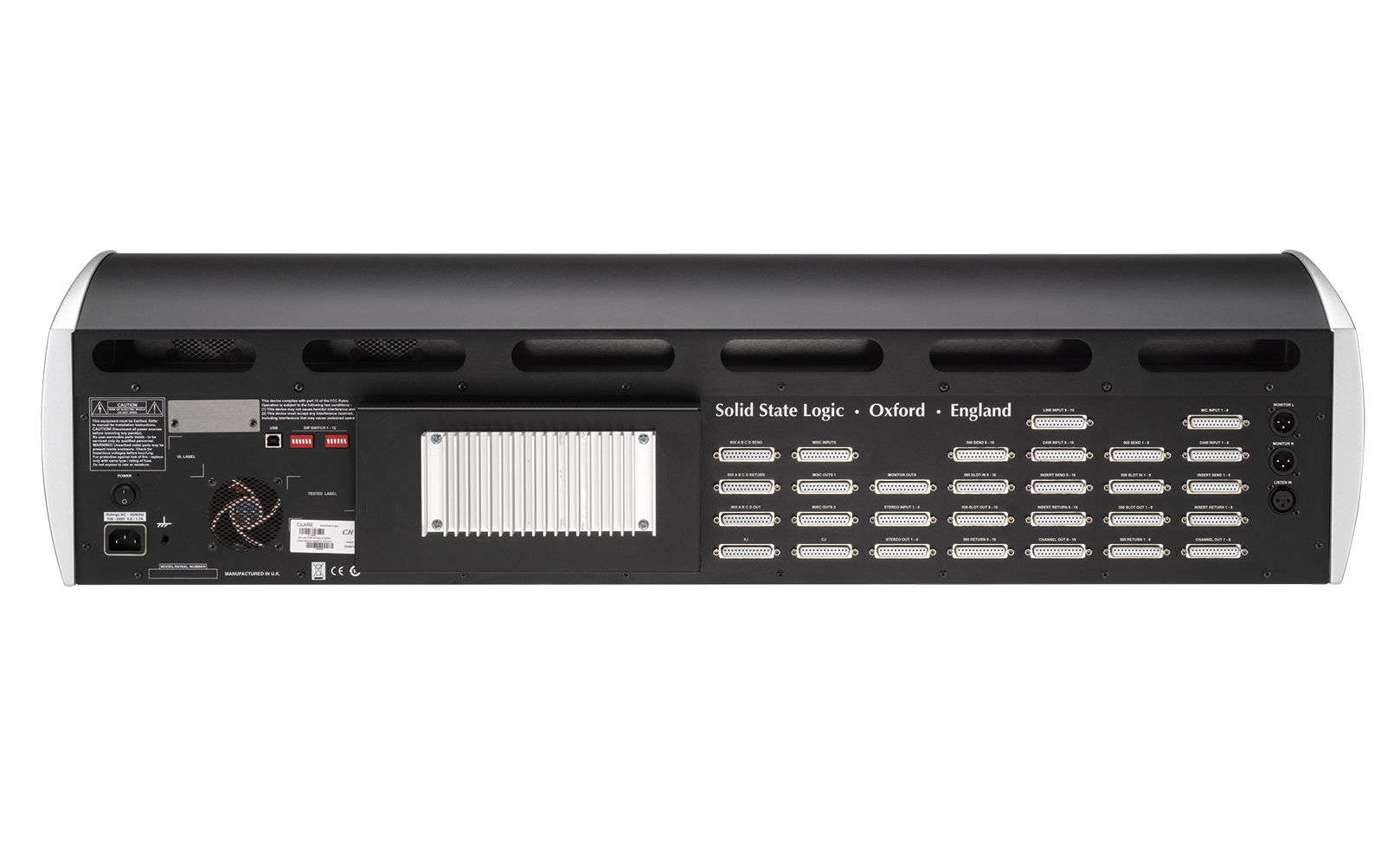

Connections:
- Power Supply: IEC320 3-pin connector, 100 - 240 VAC, 50 - 60 Hz
- Analog I/O: 25-pin D-type socket, balanced, Zin > 10 kOhms, Zo ≈ 100 ohms, 3-pin XLR-M, balanced, Zo ≈ 100 ohms
- Headphones: Stereo 1/4" jack socket, Zo ≈ 75 ohms
- iJack: Stereo 3.5 mm jack socket, Zi ≈ 10 kOhms
- USB: 1 x type-B chassis socket (SSL diagnostic use only)
Performance:
- Maximum I/O Level: +18 dBu or 24 dBu
- Frequency Response:
Line/Alt in to Channel Out (post): 20 Hz - 40 kHz (±0.2 dB)
Line/Alt in to Mix bus (single fader): 20 Hz - 40 kHz (±0.5 dB) - THD + N: < 0.05% (20 Hz - 20 kHz)
- Noise:
Line/Alt in to Channel Out (post): < -86 dBu (20 Hz - 20 kHz)
Line/Alt in to Mix bus (single fader): < -83 dBu (20 Hz - 20 kHz)
THD + N: > +24 dBu (into 10 kOhms)
Electro Magnetic Compatibility:
- EN55103-1:2009, EN55103-2:2009
- Environment: E4
- Initial in-rush current: 3.2 A
- 5 sec in-rush current: 3.2 A
- Braid-screened and Star Quad cables recommended
- EMC Performance Criteria: Line level inputs and outputs, measured at mid-gain, noise < -56 dBu
Environmental:
- Operating Temperature: +41 to 86 °F (+5 to 30 °C)
- Non-operating Temperature: -3 to 122 °F (-20 to 50 °C)
- Max. Gradient: 59 °F (15 °C/hour)
- Humidity (Operating): 20 to 80%
- Humidity (Non-operating): 5 to 90%
- Max. Wet Bulb: 84.2 °F (29 °C), non-condensing
- Vibration: Operating < 0.2 G (3 - 100 Hz); Non-operating < 0.4 G (3 - 100 Hz)
- Shock: Operating < 2 G (10 ms max.); Non-operating < 10 G (10 ms max.)
- Altitude: Operating 0–3000 m; Non-operating 0–12000 m
Power: < 300 watts
Dimensions (W x H x D): 40 x 9.9 x 32" (1015 x 251 x 812 mm)
Weight: 89.5 lb (40.6 kg)
