Telefunken U47
- Classic punchy, mid-forward sound with natural bite
- Legendary extended low-frequency response
- Selectable polar patterns: Cardioid and Omni
- Historically accurate US-made M7 center-terminated capsule
- TELEFUNKEN Elektroakustik VF14k vacuum tube
- Point-to-point wired in the USA, faithful to the original design
- Includes American-made vintage-compatible cable and fully regulated power supply
Product information "Telefunken U47"
For over 70 years, the U47 has been a cornerstone of professional recording studios worldwide. Celebrated for its authoritative midrange and extended low-end response, it excels on vocals, electric guitars, orchestral ensembles, and chamber music alike. TELEFUNKEN Elektroakustik’s recreation of the U47 remains faithful to the original design, including the historically accurate BV8 output transformer and M7 capsule. The result is the same rich, vibrant tone that has cemented the U47’s legendary status, delivering classic punch, presence, and musicality in every recording.
Each system includes:
- U47 Microphone

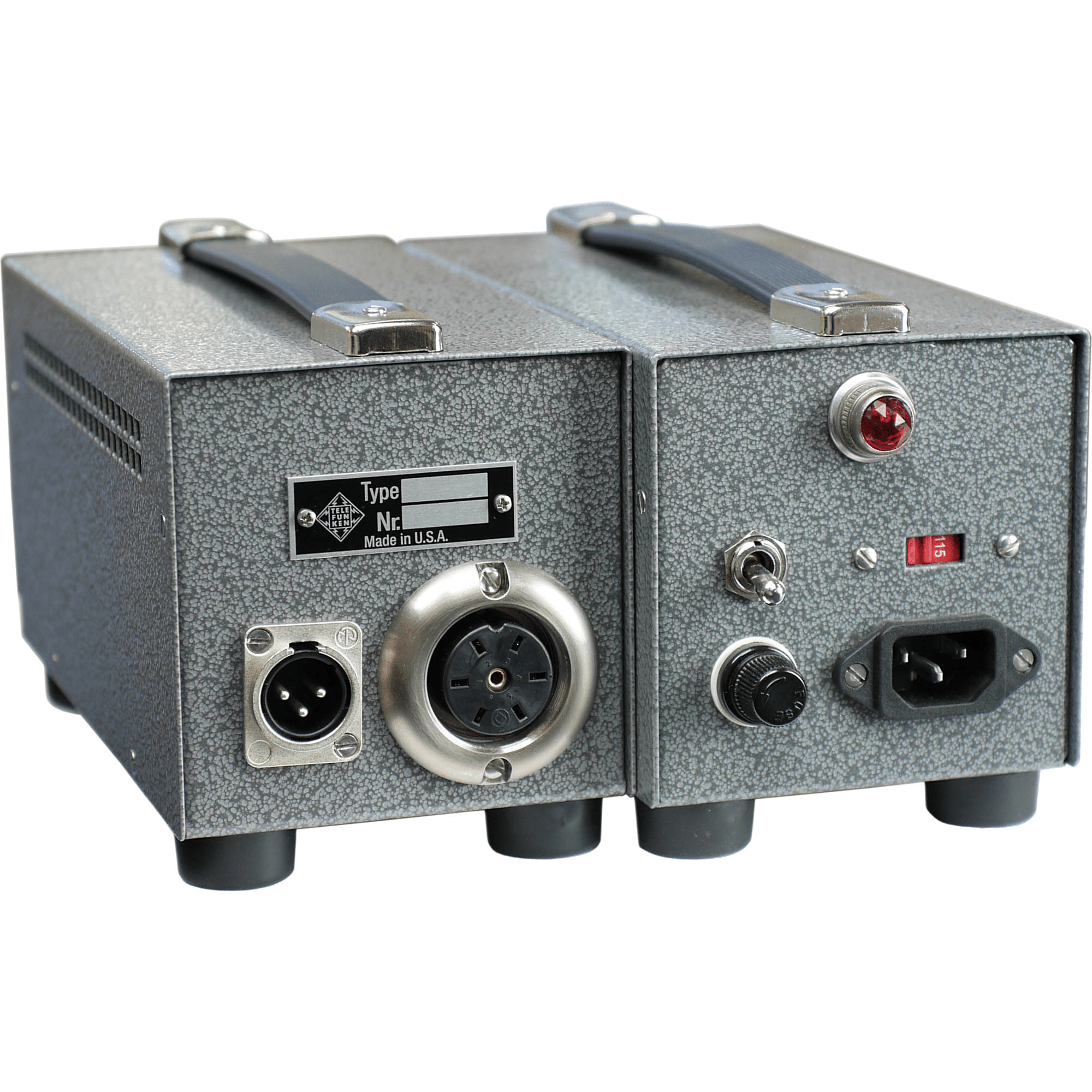

- M 940H Power Supply

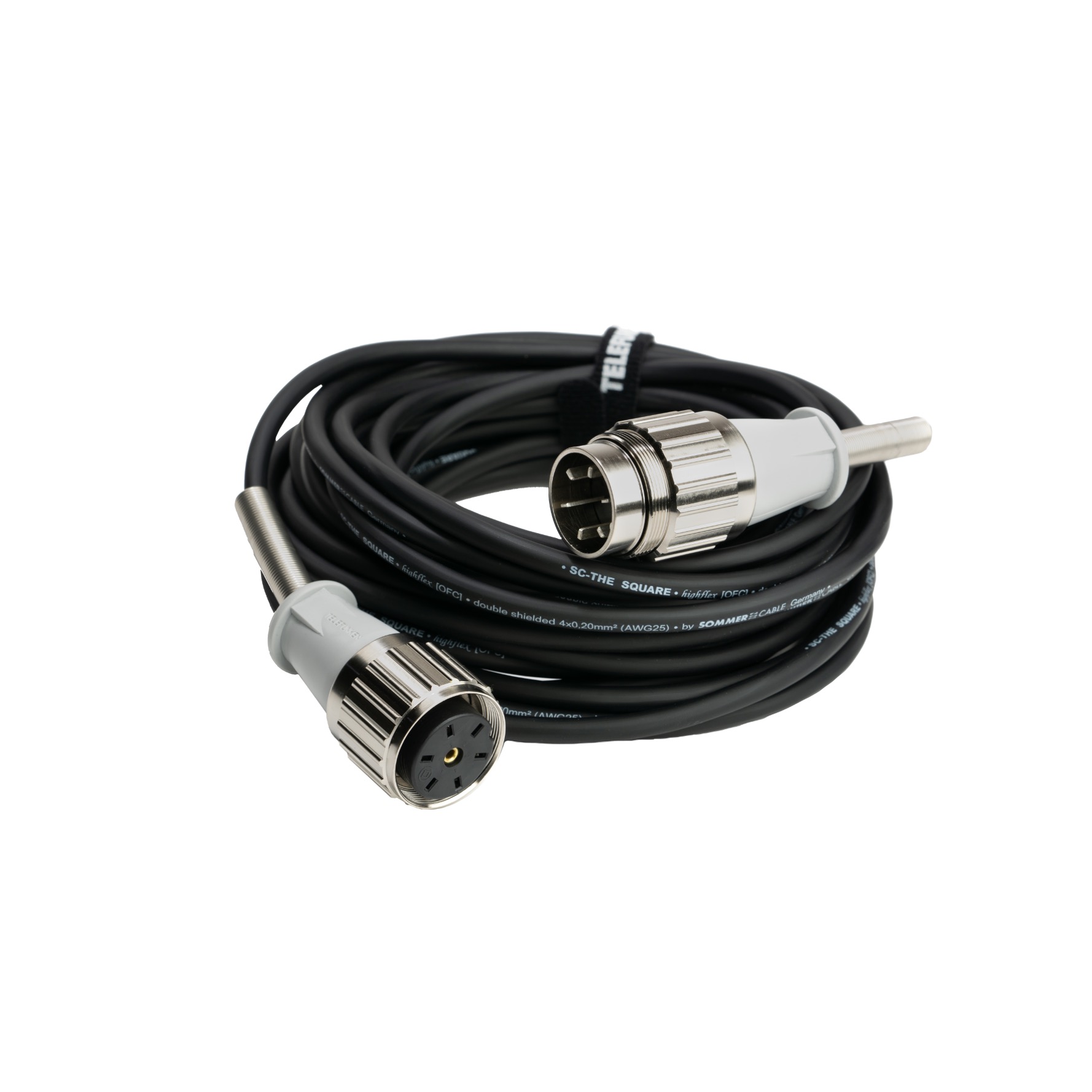

- M 840TH Sommer Tube Microphone Cable – 10m

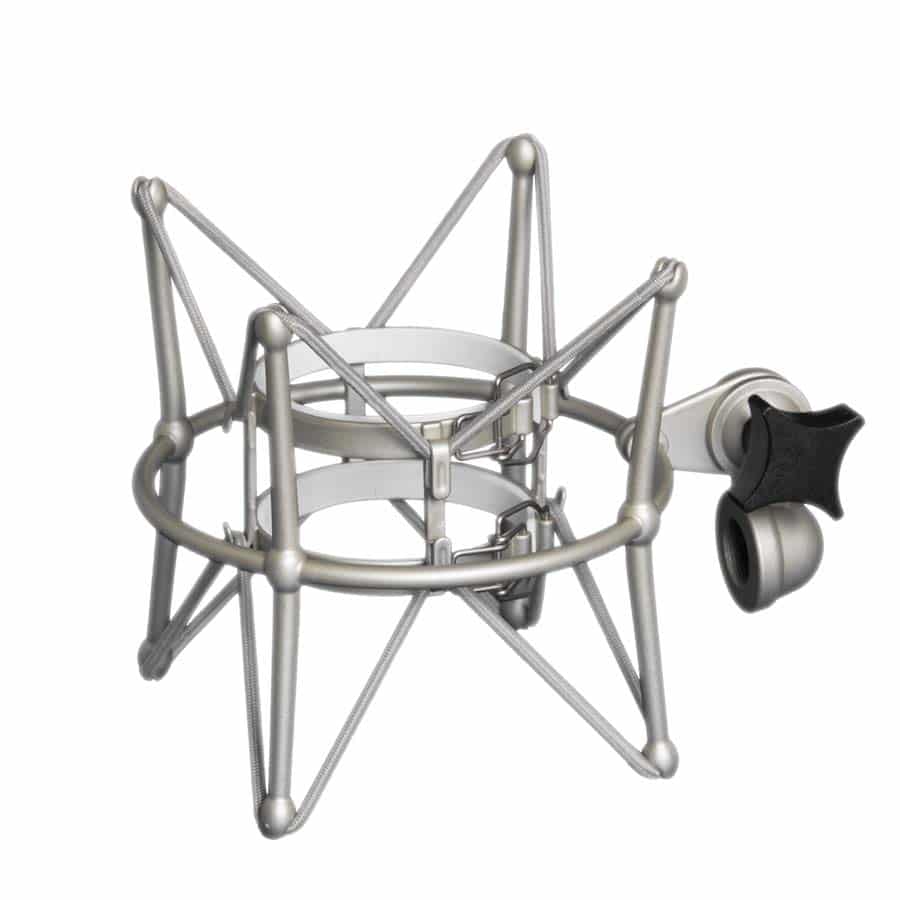

- M 740 Shock Mount

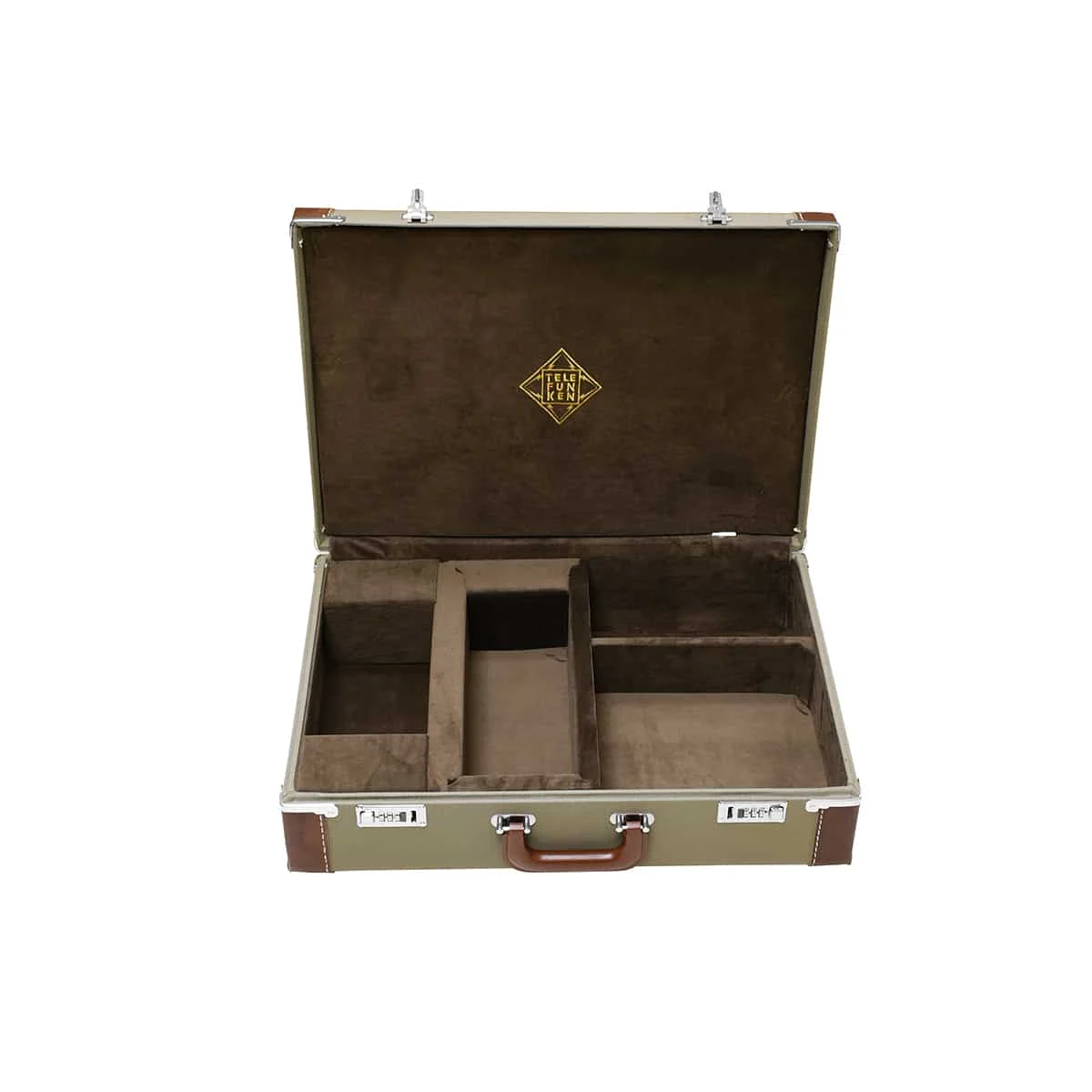

- FC40 Locking Flight Case

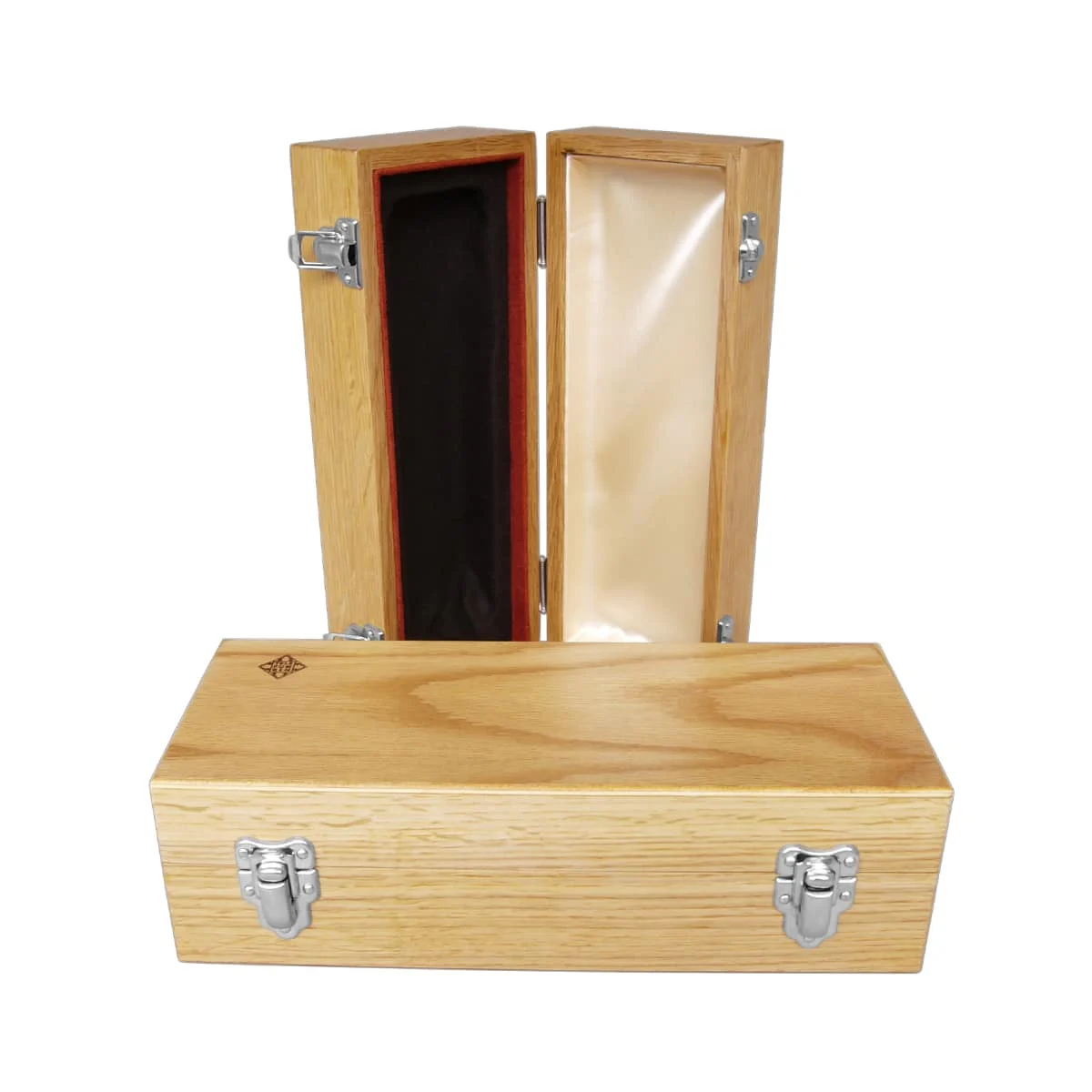

- WB40 Wooden Microphone Box
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Telefunken Elektroakustik
TELEFUNKEN GmbH
Bockenheimer Landstrasse 101 D-60325 Frankfurt am Main Germany
www.telefunken.de
Klemm Music Technology e.K.
Sebastian-Kneipp-Str. 96 37217 Ziegenhagen Deutschland
vertrieb@klemm-music.de
https://klemm-music.de
Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TELEFUNKEN Elektroakustik M7 – Center Terminated Large Diaphragm
Tube: TELEFUNKEN Elektroakustik VF14K
Transformer: TELEFUNKEN Elektroakustik BV8
Sensitivity: 24.5 mV/Pa, ±1 dB
THD at 1 kHz at 1 Pa (Amplifier): < 0.3%
Output Impedance: 200 Ω
Maximum SPL (for 1% THD): 127 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9 dBA
Dimensions: 240 mm L x 60 mm Dia
Weight: 620 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case
